Hotel Restaurant mini 150 Under Counter Glass Commercial Dishwasher

FOB Reference Price:Get Latest Price
$2,500.00 - $5,000.00 / Units | 1 Unit/Units (Min. Order)
Lead Time:
Quantity(Units) 1 - 1 >1
Est. Time(days) 30 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
INGRO
Model Number:
YDW-JJ001
Power Requirements:
220V AC/50Hz/1PH
Incoming water temperature:
10-60 ℃
Tank heater:
2.2 Kw
Booster heater:
2.4 Kw
Total power:
2.65 Kw
Total amps required:
14 A
Rated current of air circuit breaker:
16 A
Dirers syringe:
1A
Drain pump:
1A
NO.of seats corresponded(Table):
150
Packaging & Delivery
Port
guangzhou & shenzhen
Lead Time :
Quantity(Units) 1 - 1 >1
Est. Time(days) 30 To be negotiated

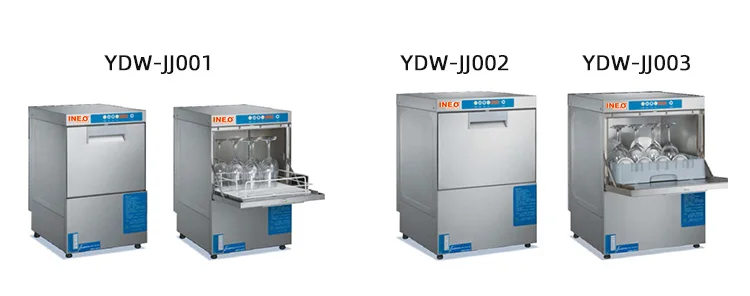

Under-Counter Glass and Dishwasher

 Item No.Product NameSpecification
 YDW-JJ001150 Under Counter Glass Dishwasher Power Requirements:220V AC/50Hz/1PH
Incoming water temperature(℃):10-60
Tank heater(Kw):2.2
Booster heater(Kw):2.4
Total power(Kw):Max 2.65
Total amps required(A):14A
Rated current of air circuit breaker(A):16
Rinse aid injector:1
Drain pump:1
Record the number of washing:9999
NO.Of seats corresponded(Table):150
Heating:Electricity
External Dimension(mm):460*560*745
Useful Size(WxH/mm):410*310
Racks(basket/hour):40
Water consumption(Liter/basket):2.54
Wash temperature(℃):55-60
Rinse temperature(℃):82-90
Wash cycle(S):90/120/180
water inlet(in):3/4" change to 1/2
Drain outlet(mm):27
Intel water pressure(Kg/cm²):2-5
Intel water hardness(g/L):0.034-0.103
Weight(Kg):52.25
Packaged Weight(Kg):61.65
Package Size(mm):635*520*920
 YDW-JJ002175 Under Counter Glass Dishwasher Power Requirements:N~380V AC/50Hz/3PH
Incoming water temperature(℃):10-60
Tank heater(Kw):2.2
Booster heater(Kw):6
Total power(Kw):8.78
Total amps required(A):19
Rated current of air circuit breaker(A):25
Rinse aid injector:1
Drain pump:1
Record the number of washing:9999
NO.Of seats corresponded(Table):175
Heating:Electricity
External Dimension(mm):573*607*815
Useful Size(WxH/mm):503*333
Racks(basket/hour):40
Water consumption(Liter/basket):2.8
Wash temperature(℃):55-60
Rinse temperature(℃):82-90
Wash cycle(S):90/120/180
water inlet(in):3/4"change to 1/2
Drain outlet(mm):27
Intel water pressure(Kg/cm²):2-5
Intel water hardness(g/L):0.034-0.103
Weight(Kg):67.5
Packaged Weight(Kg):71.5
Package Size(mm):630*710*1000
 YDW-JJ003150 Under Counter Glass Dishwasher Power Requirements:220V AC/50Hz/1PH
Incoming water temperature(℃):10-60
Tank heater(Kw):2.2
Booster heater(Kw):2.4
Total power(Kw):Max 3
Total amps required(A):15
Rated current of air circuit breaker(A):16
Rinse aid injector:1
Drain pump:1
Record the number of washing:9999
NO.Of seats corresponded(Table):150
Heating:Electricity
External Dimension(mm):573*607*815
Useful Size(WxH/mm):503*333
Racks(basket/hour):40
Water consumption(Liter/basket):2.8
Wash temperature(℃):55-60
Rinse temperature(℃):82-90
Wash cycle(S):90/120/180
water inlet(in):3/4"change to 1/2
Drain outlet(mm):27
Intel water pressure(Kg/cm²):2-5
Intel water hardness(g/L):0.034-0.103
Weight(Kg):67.5
Packaged Weight(Kg):71.65
Package Size(mm):630*710*1000
